Feature:

1. The standard TCP / IP communication, multi-stage lightning protection, surge protection
2. Large-capacity Flash memory, stored data is not lost power for 10 years
3. All chip imported new and original, to meet industrial requirements to meet the wider work environment
4. All inputs with optocoupler protection system more stable
5. Identification of a variety of ways to open the door: card, password, card + password, double cards, free passage, timed door switch, timer alarm
6. Support remote operation door switch; switch fire alarm
7. Support regional cross-machine anti absconds; support interlocked
8. Support multiple events alarm output, such as an invalid card, invalid time, door alarm, the door opened out
9. All Weigand interface is compatible 26,34,37 agreement with optocoupler protection.
10. sends data, quantitative restrictions transmission from the controller
11. Support individual settings for each card is valid
12. All access devices support a mixed installation
13. with the support and attendance software, on-line patrol function
14. support multi-user multi-machine management and monitoring in real-time
15. Support network camera, with multi-functional electronic map, enabling real-time network monitoring and video capture

Access Control|Time Attendance |Zkteco|Hotel Lock System|Locker Lock

Access Control|Time Attendance |Zkteco|Hotel Lock System|Locker Lock



Security Standalone RFID Keypad Access Controller

Specification:

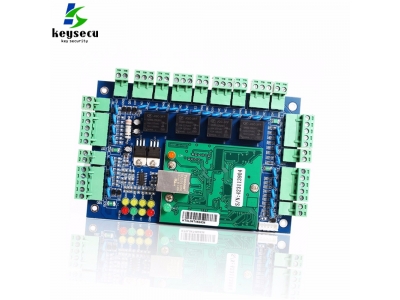

ParameterSingle Access Control BoardTwo-door Access Control BoardFour-Door Access Control Board
Model #K-L01K-L02K-L04
CommunicationTCP/IP 10M/100M adaptive
*old model  RS485 communications can be customized
Size of PCB board160mm *106mm160mm *106mm218mm *106mm
Size of Case273mm*228mm*65mm
Power Supply12VDC 4-7A
Power Consumption of Circuit BoardLess than 100mA
Input Format of ReaderWiegand 26 (All card reader with compatible protocol, such as Motorola  HID  EM Mifare one etc)
Quantity of Readers2pair4 pairs4pair
Door Controled1pair2 pairs4 pcs
Door opening time extending setting1-600 seconds(adjustable)
Max q ' ty of controllerNo limit
---Remark: N denotes q ' ty of computer serial prot or q ' ty of 485hub port, support 256pcs ports
Operation Temperature- 40 C~70 C
Operation Humidity10-90  RH  No Condensation
Q ' ty of users20,000 Users
Q ' ty of Event Buffers(offline)100,000 event buffers
Power interruption protection measureHigh Speed Memory, Records never lose
Max Distance from Reader to Controller100m (suggestion distance 80m)
Max Distance between ControllersRS232: Communication Distance less than 13m, suggestion distance is 3m or less
RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
TCP/IP: Depends on net coverage area
CollocationsPCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for long time door open, ilegal break in, intimidateYes
Fire and alarm linkageIf no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm


Security Standalone RFID Keypad Access Controller
